DEDE Seal Co., Ltd. is one of the most reliable manufacturers and suppliers of tg oil seal in China. If you're going to buy bulk tg oil seal made in China, welcome to get pricelist from our factory. All customized seals are with high quality and competitive price.

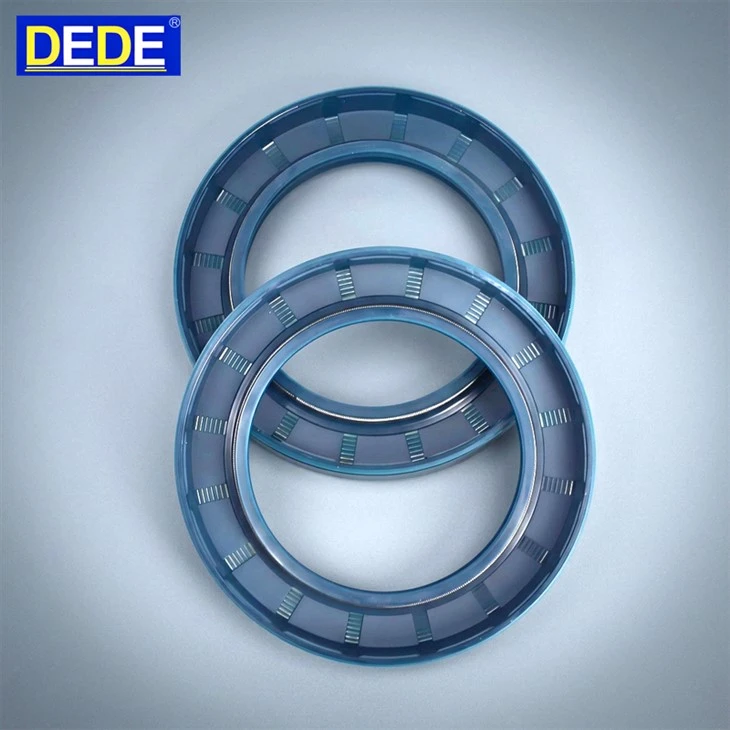

TG Oil Seal adopts two exclusive optimized structures unavailable on ordinary TC models:

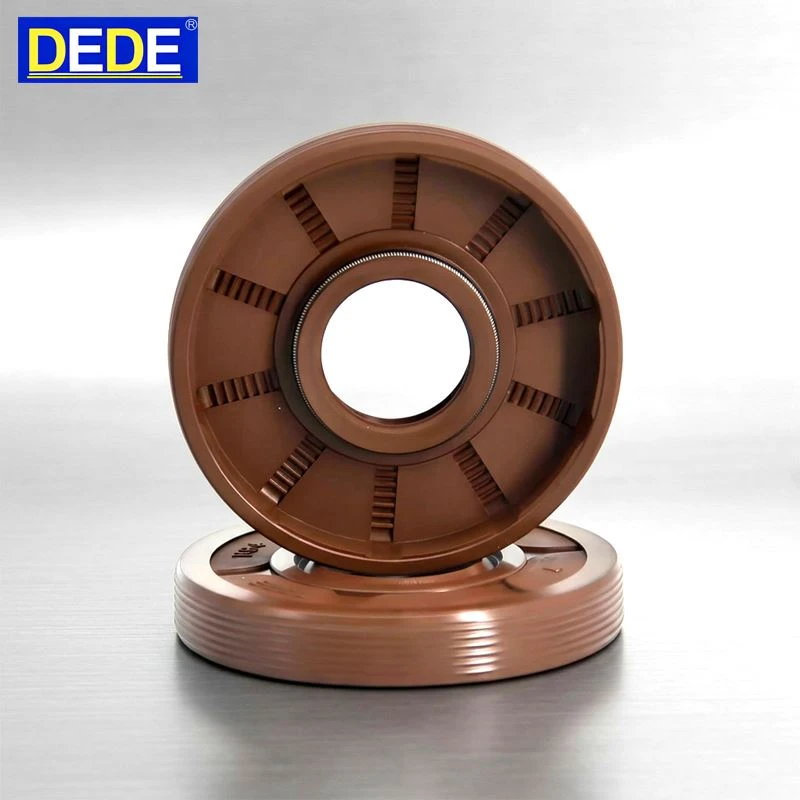

Threaded full rubber outer casing
Continuous spiral annular threads are molded on the outer rubber surface. During press fitting, threads form multiple micro-sealing rings inside the housing bore, blocking circumferential side leakage caused by slight bore scratches or dimensional tolerance; thicker rubber layer also boosts anti-corrosion and shock absorption performance.
Reinforced tandem double-lip system
Both main oil lip and external dust lip are spring-assisted, with 30%-40% thicker dust lip than TC. The tall dust lip scrapes off mud, sand and slurry stacked on the shaft surface before they reach the main sealing edge, avoiding abrasive scratch damage under heavy contamination conditions. Built-in stainless garter spring provides persistent radial preload to the double lips, maintaining tight shaft contact under low internal pressure up to 0.08MPa, slightly higher than standard TC seals. Two mature rubber grades (NBR / FKM) are provided to match normal-temperature field machinery and high-temperature heavy mining equipment separately.
Product Advantages
Threaded rubber outer diameter forms multi-channel housing sealing barriers, thoroughly eliminating outer ring circumferential leakage
Dual spring-loaded thickened double lips, ultra-strong mud & sand scraping ability for severely polluted open-air equipment
Higher pressure bearing capacity than common TC oil seals, stable sealing under slight cavity pressure fluctuations
Thickened dust lip reduces abrasive wear of main sealing edge, greatly extending overhaul cycle of heavy machinery
Integrated one-piece molding, compatible with automatic press-fit assembly of mass-produced heavy equipment
Complete metric & inch standard sizes, customized non-standard dimensions supported for special mining & agricultural machines
Typical Applications
- All kinds of farm machinery: tractors, harvesters, balers, irrigation pump shafts exposed to mud and crop debris
- Off-road construction equipment: excavators, compact loaders, road rollers, concrete mixers
- Underground mining rotary components: mine pumps, mining gearboxes, heavy transport wheel shafts
- Industrial heavy-duty gearboxes and hydraulic pumps operating in dusty open workshops
- Heavy-duty transmission systems of outdoor mobile industrial equipment
