DEDE Seal Co., Ltd. is one of the most reliable manufacturers and suppliers of tc oil seal in China. If you're going to buy bulk tc oil seal made in China, welcome to get pricelist from our factory. All customized seals are with high quality and competitive price.
TC Oil Seal adopts three core functional sections integrated into one piece, completely different from single-lip TA/TB exposed metal seals and single-dustless SC full-rubber seals:
Spring pre-tightened main sealing lip
Built-in stainless garter spring delivers lasting radial clamping force, closely fits rotating shafts to block oil permeation under light internal pressure; smooth curved lip minimizes friction heat during long continuous rotation.
Independent outer dust lip
Separated dust barrier intercepts floating dust, sand, light splashing water and fine grit, avoiding abrasive scratches on the main sealing edge and extending overall service life significantly.
Full seamless rubber coated outer diameter
The entire metal skeleton is wrapped by elastic rubber. During press-fitting into housing bore, rubber fills minor dimensional deviations of the housing, eliminating circumferential side leakage that frequently occurs with exposed metal outer seals. We supply NBR and FKM two mainstream elastomer formulas to match normal-temperature general equipment and high-temperature heavy-duty machinery respectively.
Key Features
Standard double-lip layout (oil lip + independent dust lip) for dual internal & external protection
100% full rubber covered outer casing to eliminate housing clearance circumferential leakage
Stainless garter spring maintains stable shaft contact force for consistent oil locking performance
Two mature rubber grades for full coverage of normal & high-temperature working conditions
Low-friction streamlined lip design, suitable for long-hour non-stop rotary operation
Complete metric & inch standard size inventory, flexible MOQ for sample & bulk export orders
Typical Applications
- All specifications of AC & DC drive electric motors with aluminum alloy housings
- Industrial circulating water pumps, gear oil pumps and hydraulic transfer pumps
- Small & medium general gearboxes and miniature speed reducers
- Light-duty agricultural machinery: tractors, harvesters, sprayers, threshers
- Mini construction equipment: compact loaders, road rollers, small mixers
- General industrial rotary transmission machinery with light dust exposure
Product Structure

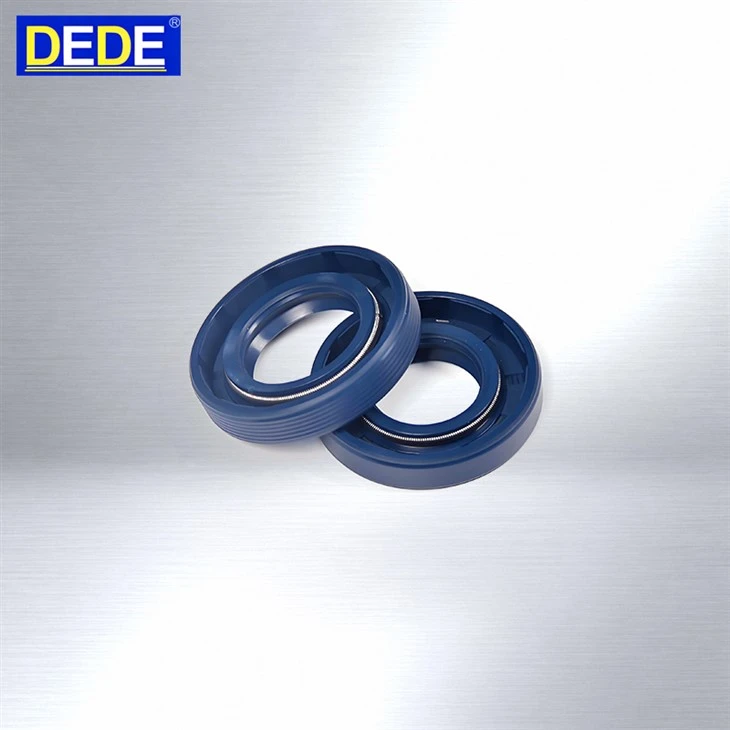

The TC oil seal is a double-lip rubber-coated skeleton oil seal. It consists of three core components: rubber body, metal skeleton and garter spring. The metal skeleton is fully wrapped by rubber, forming the outer mounting surface. It comes with a spring-loaded primary sealing lip for oil retention and an outer auxiliary dust-proof lip to resist dirt ingress. The integrated structure absorbs installation tolerance well, and the spring keeps the main lip tightly pressed against the shaft for stable sealing force.
FAQ
Hot Tags: tc oil seal, China tc oil seal manufacturers, suppliers, factory
