Question 1

How Do I Choose The Right Oil Seal Material?

Accepted Answer

The correct material depends on operating temperature, lubricant type, shaft speed, pressure, and environmental conditions. NBR: General-purpose oil resistance FKM (Viton®): High temperature and chemical resistance HNBR: Enhanced wear and heat resistance Silicone: Low-temperature applications PTFE: High-speed and aggressive chemical environments If you're unsure, DEDE's engineering team can recommend the most suitable material based on your application.

Question 2

What Causes Oil Seal Leakage?

Accepted Answer

Oil seal leakage is commonly caused by: Incorrect seal installation Shaft wear or damage Excessive shaft runout Improper seal material selection High operating temperatures Contamination entering the sealing area Regular inspection and proper seal selection can significantly reduce leakage risks.

Question 3

What Is The Difference Between A Double-lip And A Triple-lip Oil Seal?

Accepted Answer

A double-lip seal consists of a primary sealing lip and a dust lip. DEDE TG4 triple-lip seals add an auxiliary lip between the primary lip and dust lip, creating: An additional sealing barrier Better pressure distribution Extra lubricant retention Improved dust protection Extended service life Triple-lip designs are especially effective in dusty and heavy-duty environments.

Question 4

How Long Does An Oil Seal Last?

Accepted Answer

Oil seal service life depends on: Shaft speed Temperature Lubrication conditions Environmental contamination Seal material quality Under normal operating conditions, a properly selected oil seal can provide thousands of operating hours of reliable service.

Question 5

Can Oil Seals Be Reused After Removal?

Accepted Answer

Generally, oil seals are designed as replacement components. Removing and reinstalling a used oil seal may damage the sealing lip or spring, increasing the risk of leakage. For best performance, a new seal is recommended whenever maintenance is performed.

Question 6

How Do I Measure An Oil Seal Size?

Accepted Answer

Oil seals are typically specified by three dimensions: Inner Diameter (ID) × Outer Diameter (OD) × Width (W) Example: 35 × 52 × 7 mm 35 mm = Shaft Diameter 52 mm = Housing Bore Diameter 7 mm = Seal Width Accurate measurements help ensure proper fit and sealing performance.

Question 7

What Are The Advantages Of PTFE Shaft Seals?

Accepted Answer

PTFE shaft seals offer: Extremely low friction High-speed capability Excellent chemical resistance Dry-running capability High-temperature performance They are often used in pumps, compressors, chemical equipment, and high-speed rotating machinery.

Question 8

When Should I Use A Cassette Oil Seal?

Accepted Answer

Cassette oil seals are recommended for applications exposed to: Mud Dust Water Abrasive contaminants Their multi-component construction provides superior protection compared to conventional oil seals. Common applications include agricultural machinery, construction equipment, and mining machinery.

Question 9

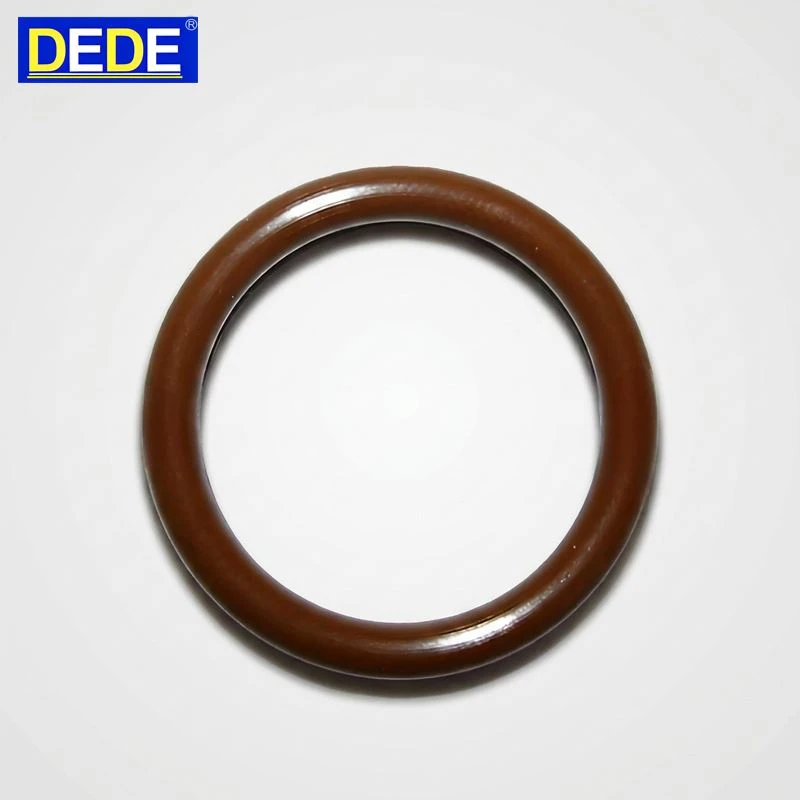

What Is The Difference Between An O-ring And An X-ring?

Accepted Answer

An O-ring has a simple round cross-section. An X-ring features a four-lip design that provides: Lower friction Improved lubrication retention Better dynamic sealing performance Reduced twisting during operation X-rings are often preferred in dynamic sealing applications.

Question 10

Does DEDE Support Custom Oil Seal Manufacturing?

Accepted Answer

Yes. DEDE provides OEM and customized sealing solutions based on: Drawings Samples Material requirements Application conditions Our engineering team can assist with design optimization, material selection, and production support for special sealing requirements.
